SDEC Genset — Shanghai Diesel Generators 60–2400kW
Power Range: 60kW - 2400kW | 37 Models Available | 2-Year Warranty | Worldwide Shipping

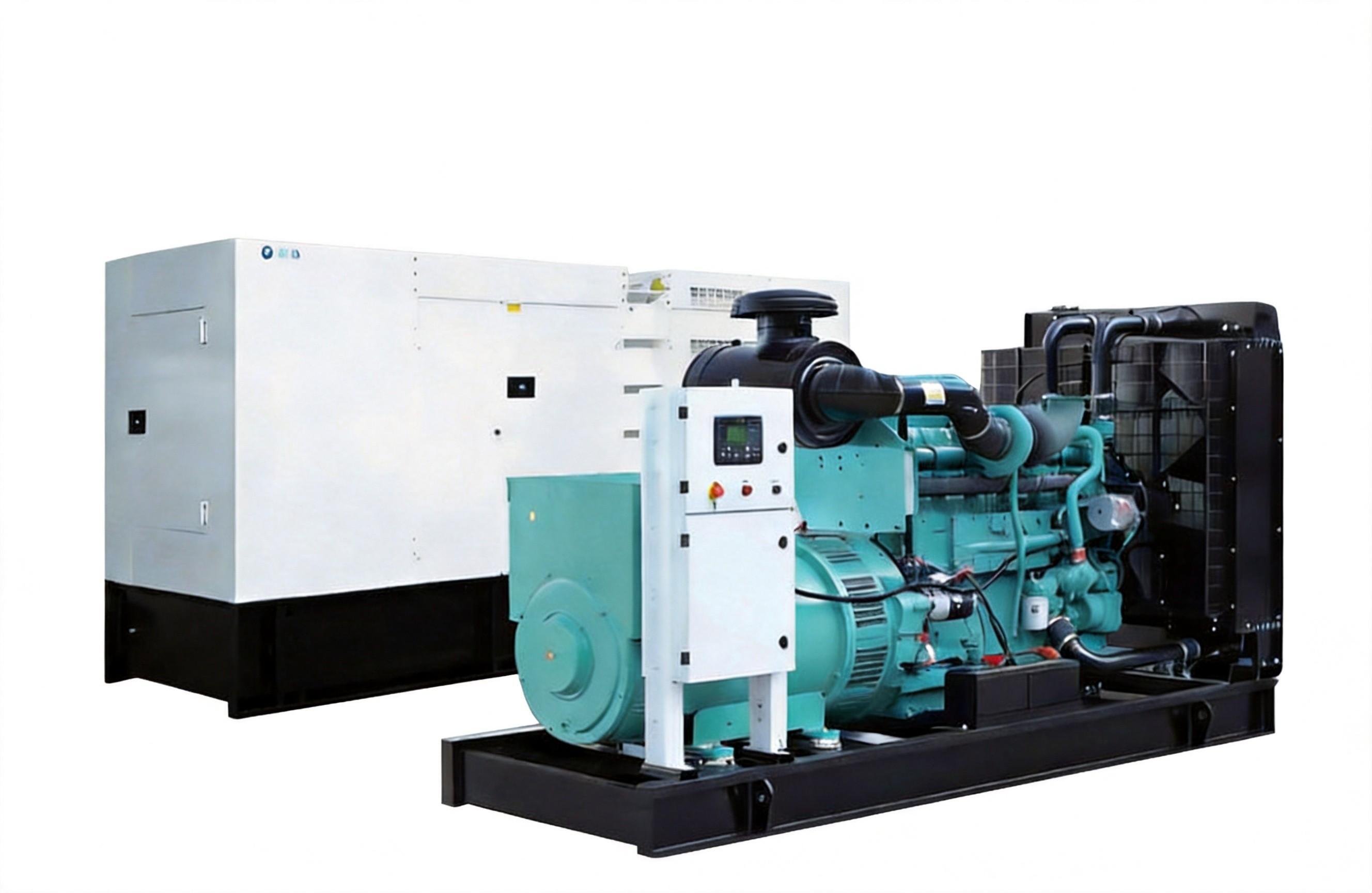

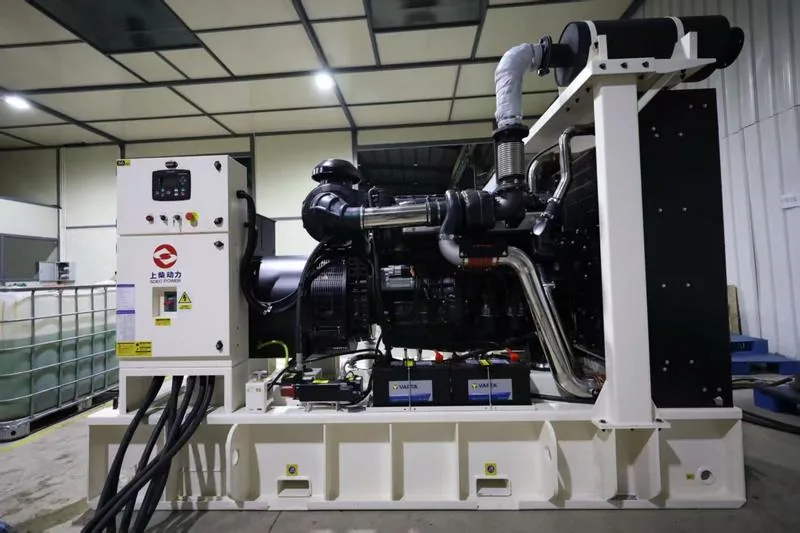

A SDEC genset is built on a genuine Shanghai Diesel Engine (SDEC) prime mover — the same engines that power China's marine and construction fleets for decades. We build 37 standard SDEC genset models from 60kW to 2400kW, each matched with a Stamford alternator, SmartGen controller and Deep Sea / ComAp options, in open, silent canopy or container format. Every SDEC genset is load-bank tested at 100% rated output before shipment and ships with a 2-year international warranty.
Call 13553838770SDEC (Shanghai Diesel Engine Co., Ltd.), established in 1947, is one of China's oldest and most respected diesel engine manufacturers. Headquartered in Shanghai, SDEC produces a comprehensive range of diesel engines from 60 kW to 2400 kW for generator set applications. SDEC engines are known for their robust construction, reliable performance, and excellent value proposition. Jinjia Power offers a complete range of SDEC-powered generator sets, engineered to meet the demands of industrial, commercial, and agricultural applications across China and international markets.
SDEC Small Industrial 40-200kW Range
Back to top
40-200kW SDEC Diesel Generator Set
Industrial-grade generator sets designed for commercial buildings, small to medium factories, hospitals, and data centers. These units combine reliable engine performance with premium alternator technology for consistent power delivery.
SDEC Medium Industrial 220-500kW Range
Back to top
220-500kW SDEC Diesel Generator Set
Heavy-duty generator sets engineered for medium to large industrial facilities, critical infrastructure, and demanding commercial applications. These generators feature robust construction, advanced control systems, and superior fuel efficiency.
SDEC Large Industrial 550-1000kW Range
Back to top
550-1000kW SDEC Diesel Generator Set
High-capacity power generation systems designed for large industrial facilities, heavy manufacturing, major infrastructure projects, and mission-critical applications. These generators deliver exceptional power density and long-term reliability.
SDEC Heavy Industrial 1200-2400kW Range
Back to top
1200-2400kW SDEC Diesel Generator Set
Massive power generation systems engineered for the most demanding industrial environments, heavy industries, and utility-scale applications. These generator sets are designed for parallel operation and 24/7 continuous duty.
SDEC (Shangchai) Generator Sets — Full Specifications
SDEC (Shanghai Diesel) engine powered generator sets, 66–2800 kVA, 50Hz
| Model | Standby (kVA) | Prime (kVA) | Engine Model | Fuel Consump. (L/H) | Displacement (L) | Cylinders | Noise dB(A) | Weight (kg) | Dimensions L×W×H (mm) |
|---|---|---|---|---|---|---|---|---|---|
| KDGS66S | 83 | 75 | 4ZTAA3.5-G31 | 19.1 | 3.50 | L4 | ≤85 | 790 | 1850×700×1300 |
| KDGS70S | 87 | 80 | 4HTAA4.3-G33 | 20.1 | 4.30 | L4 | ≤92 | 1050 | 1950×900×1200 |
| KDGS90S | 113 | 100 | 4HTAA4.3-G34 | 24.5 | 4.30 | L4 | ≤92 | 1100 | 1950×950×1200 |
| KDGS100S | 125 | 112 | 4HTAA4.3-G35 | 28 | 4.30 | L4 | ≤92 | 1110 | 1950×950×1200 |
| KDGS120S | 150 | 137 | 4HTAA4.3-G36 | 29.1 | 4.30 | L4 | ≤92 | 1150 | 1950×950×1200 |
| KDGS132S | 165 | 150 | 6HTAA6.5-G32 | 32.6 | 4.30 | L4 | ≤95 | 1360 | 2350×950×1375 |
| KDGS150S | 187 | 150 | 6HTAA6.5-G35 | 36.1 | 4.30 | L6 | ≤95 | 1360 | 2350×950×1375 |
| KDGS165S | 206 | 187 | 6HTAA6.5-G33 | 39.2 | 4.30 | L4 | ≤95 | 1410 | 2320×950×1375 |
| KDGS180S | 225 | 200 | 6HTAA6.5-G34 | 43.4 | 4.30 | L6 | ≤95 | 1440 | 2320×950×1375 |
| KDGS200S | 250 | 225 | 6DTAA8.9-G32 | 48.9 | 8.82 | L6 | ≤96 | 1830 | 2550×1000×1385 |
| KDGS220S | 275 | 250 | 6DTAA8.9-G33 | 53.6 | 8.82 | L6 | ≤96 | 1950 | 2550×1000×1470 |
| KDGS250S | 312 | 275 | 6DTAA8.9-G34 | 59.4 | 8.82 | L6 | ≤96 | 1950 | 2550×1000×1470 |
| KDGS280S | 350 | 312 | 6ETAA11.8-G32 | 65.3 | 11.82 | L6 | ≤97 | 2800 | 3000×1250×1620 |
| KDGS300S | 375 | 350 | 6ETAA11.8-G33 | 71.6 | 11.82 | L6 | ≤97 | 2550 | 3100×1150×1620 |
| KDGS330S | 412 | 375 | 6ETAA11.8-G31 | 79.3 | 11.82 | L6 | ≤97 | 2800 | 2950×1150×1620 |
| KDGS360S | 450 | 400 | 6ETAA12.8-G32 | 96.1 | 12.82 | L6 | ≤97 | 2700 | 3100×1150×1620 |
| KDGS400S | 500 | 450 | 6ETAA12.8-G31 | 99.1 | 12.82 | L6 | ≤97 | 2700 | 3300×1150×1620 |
| KDGS440S | 550 | 500 | 6ETAA12.8-G310 | 107.5 | 12.82 | L6 | ≤97 | 3100 | 3100×1300×1770 |
| KDGS500S | 625 | 562 | 12GTAA27-G33 | 121.7 | 26.60 | V12 | ≤103 | 4370 | 3550×1690×2120 |
| KDGS550S | 687 | 625 | 12GTAA27-G32 | 136.1 | 26.60 | V12 | ≤103 | 4550 | 3400×1690×2120 |
| KDGS620S | 750 | 700 | 12GTAA27-G31 | 149.9 | 26.60 | V12 | ≤103 | 4550 | 3400×1690×2120 |
| KDGS660S | 825 | 750 | 6KTAA25-G32 | 163 | 25.20 | L6 | ≤112 | 5550 | 3800×1640×2160 |
| KDGS720S | 900 | 825 | 6KTAA25-G31 | 169 | 25.20 | L6 | ≤112 | 5650 | 3900×1640×2160 |
| KDGS800S | 1000 | 900 | 6KTAA25-G320 | 197.1 | 25.20 | L6 | ≤112 | 6050 | 4000×1750×2320 |
| KDGS900S | 1125 | 1000 | 6KTAA25-G321 | 212.8 | 25.20 | L6 | ≤112 | 6250 | 4000×1750×2320 |
| KDGS1000S | 1250 | 1125 | 6WTAA35-G310 | 259.2 | 35.10 | L6 | ≤118 | 8000 | 4500×2080×2450 |
| KDGS1100S | 1375 | 1250 | 6WTAA35-G311 | 286 | 35.10 | L6 | ≤118 | 8050 | 4500×2080×2450 |
| KDGS1200S | 1500 | 1375 | 12KTA58-G36 | 305.3 | 57.20 | V12 | ≤115 | 13550 | 4500×2200×2515 |
| KDGS1350S | 1688 | 1563 | 12KTA58-G35 | 339.3 | 57.20 | V12 | ≤115 | 13970 | 4500×2200×2515 |
| KDGS1500S | 1875 | 1688 | 12KTA58-G34 | 372.1 | 57.20 | V12 | ≤115 | 14430 | 4600×2200×2515 |
| KDGS1650S | 2063 | 1875 | 12KTA58-G33 | 410.3 | 57.20 | V12 | ≤115 | 14770 | 4600×2200×2515 |
| KDGS1800S | 2250 | 2000 | 12KTA58-G32 | 441.3 | 57.20 | V12 | ≤115 | 15090 | 4700×2200×2515 |
| KDGS2000S | 2500 | 2250 | 12KTA58-G31 | 464.9 | 57.20 | V12 | ≤115 | 15260 | 4700×2455×2515 |
| KDGS2200S | 2750 | 2500 | 16KTA76-G33 | 517.6 | 76.30 | V16 | ≤122 | 18200 | 6400×2560×2900 |
| KDGS2400S | 3000 | 2750 | 16KTA76-G32 | 568.7 | 76.30 | V16 | ≤122 | 18500 | 6400×2560×2900 |
| KDGS2600S | 3250 | 3000 | 16KTA76-G31 | 620 | 76.30 | V16 | ≤122 | 18900 | 6500×2830×2900 |
| KDGS2800S | 3500 | 3125 | 16KTA76-G310 | 647 | 76.30 | V16 | ≤122 | 19100 | 6600×2830×3430 |
* All data sourced from official product catalog. Specifications subject to change without notice.
About SDEC Diesel Generators
SDEC (Shanghai Diesel Engine Co., Ltd.), established in 1947, is one of China's oldest and most respected diesel engine manufacturers. Headquartered in Shanghai, SDEC produces a comprehensive range of diesel engines from 60 kW to 2400 kW for generator set applications. SDEC engines are known for their robust construction, reliable performance, and excellent value proposition. Jinjia Power offers a complete range of SDEC-powered generator sets, engineered to meet the demands of industrial, commercial, and agricultural applications across China and international markets.
Jinjia Power offers a comprehensive range of SDEC diesel generator sets covering 60kW to 2400kW prime power, with 37 models available. Each generator set is engineered and assembled in an ISO 9001 certified plant, individually load bank tested, and backed by a comprehensive 2-year warranty. Our SDEC generator sets feature premium Stamford or Leroy Somer alternators, Deep Sea or SmartGen digital controllers, and heavy-duty steel base frames with integrated fuel tanks.
Whether you need standby power for a commercial building, prime power for an industrial facility, or continuous power for a critical application, Jinjia Power has the right SDEC diesel generator solution for your needs. All units are available for worldwide shipping with fast delivery times.
Buying an SDEC Genset: What to Check Before You Order
As a direct SDEC genset supplier, we quote every unit against your actual load profile rather than a catalogue rating. Send us the required standby kVA, running kW, voltage and frequency (50 or 60 Hz), and we return a firm quote within one working day — covering engine model, alternator frame, controller, enclosure type and CIF price to your port. Because we assemble in-house, we can also quote a non-standard rating, dual-frequency output or a containerised package without the lead time a distributor would need.
Typical SDEC genset price drivers are the engine rating (prime vs standby), alternator brand (Stamford vs Leroy Somer vs copy), controller (SmartGen HGM vs Deep Sea vs ComAp), and enclosure (open skid, silent canopy, or 20ft/40ft container). Tell us which of these you can flex and we will show you where the cost actually sits.
Didn't find what you're looking for?
Contact our expert team for a custom solution tailored to your specific power requirements. We can engineer generator sets with custom voltage, fuel system, control panel, and enclosure configurations.
