What power range of Weichai generator sets do you supply?

We supply Weichai sets from 12 kW to 3000 kW, covering 40 models. Tell us the standby kVA, the site voltage and the enclosure type and we will point you at the right frame instead of the nearest catalogue page.

Which Weichai power bands are available, and how do they differ?

The range is organised into 5 bands: Small Industrial (12-200 kW), Medium Industrial (200-500 kW), Large Industrial (500-1000 kW), Heavy Industrial (1000-2000 kW) and Ultra Power (2000-3000 kW). Bands are split by duty, not by marketing — a set in the lower band is usually an open-skid standby unit, while the upper bands move to larger displacement engines, turbocharging and heavier frames. Compare frames inside a band before stepping up.

What is the smallest and largest Weichai set you build?

The smallest frame starts at 12 kW and the largest at 3000 kW. The small end is normally a naturally aspirated 1500 rpm unit for standby duty; the top of the range runs a larger displacement engine at the same speed, so the footprint and weight grow with output. Both ends are built to the same test procedure.

What voltages and frequencies can a Weichai set be built for?

Standard build options are 220V/380V/440V/480V, 3-Phase, 50/60Hz (Reconnectable). The voltage/frequency pair is fixed at order stage because it decides the alternator winding and the engine speed — a 50 Hz set runs at 1500 rpm and a 60 Hz set at 1800 rpm, so the two cannot be converted after build. Non-standard voltages are quoted after we confirm the winding.

What enclosure or mounting options are available for Weichai sets?

Build options are open/Skid Mounted. Open skid suits a permanent plant room with its own ventilation and exhaust route. A soundproofed canopy is the usual choice where the set sits near people, and a container or trailer build is used when the set has to move between sites. Each option changes the footprint, weight and noise figure, so confirm it before the order is placed.

Where are the Weichai engines made, and does that affect lead time?

The engine is built by Weichai in its own plant and shipped to us as a complete unit; we build the genset around it — coupling, baseframe, enclosure, control panel and load bank test. Engine lead time therefore drives the schedule, which is why we confirm the engine model in writing before the deposit is taken.

Are Weichai generator sets load bank tested before shipment?

Yes. Every set is load bank tested at the factory before packing, and the test record travels with the shipping documents. Ask for the test sheet for your serial number if you need it for a commissioning file — we keep them on record.

What warranty is included with a Weichai generator set?

2 years or 2,000 running hours, whichever comes first, with international coverage. Wear items — filters, belts, gaskets — are excluded. Keep the load bank test record and the commissioning log; both are asked for if a claim is ever raised.

How long is the lead time for a Weichai set?

Around 20-30 days for units up to 1000 kW and 30-45 days above 1000 kW, counted from deposit and drawing approval. Special enclosures, non-standard voltages and marine classification add time. Get the date in writing before you plan site works around it.

Can you supply Weichai sets for both 50 Hz and 60 Hz markets?

Yes — both are available. The choice is locked at order stage because it sets the alternator winding and the engine speed (1500 rpm at 50 Hz, 1800 rpm at 60 Hz). A set built for one cannot be converted to the other by changing a setting.

How do I get a firm price for a Weichai generator set?

Send the standby kVA or kW, the site voltage and frequency, the enclosure type and the destination port. We reply within one working day with the exact engine model, alternator, controller and a CIF price — no catalogue guesswork and no placeholder figures.

What is the difference between prime and standby rating on a Weichai set?

Standby rating is the output the set can carry for the duration of a mains failure, with limited hours per year. Prime rating is the continuous output it can hold indefinitely with a 10% overload for one hour in twelve. Size on the rating that matches how the set will actually run — buying on standby figures for continuous duty is the most common sizing error we see.

Can two Weichai sets be paralleled for extra capacity or redundancy?

Yes, with the right controller and switchgear. Two sets can run in parallel for capacity, or in duty/standby so one carries the load and the other picks up if it fails. Paralleling needs matching voltage, frequency and phase sequence, plus a synchronising controller — tell us the target configuration and we will quote the panel with the sets.

Does a Weichai set come with an automatic transfer switch?

The ATS is quoted separately because its rating depends on the site load, not the set. An ATS senses the mains, starts the set and transfers the load, then reverses the sequence when mains returns. Give us the site's total load and the number of phases and we will size it with the set.

What fuel does a Weichai generator set run on?

Standard automotive or industrial diesel, to the sulphur grade your market allows. The fuel system is bled and the set is run on load before shipment, so it arrives ready to start. For sites with long idle periods, ask about tank sizing or fuel polishing — stale diesel is the most common no-start cause we deal with.

How noisy is a Weichai generator set, and can it be made quieter?

Open sets are typically 95-105 dB(A) at 1 m depending on frame size; a soundproofed canopy brings that down to around 65-75 dB(A) at 7 m. The exact figure for each model is listed in the specification table on this page. If the site has a noise limit, tell us the limit and the distance and we will quote the enclosure that meets it rather than the standard canopy.

Does a Weichai set need derating at altitude or in high ambient temperature?

Yes. Output falls roughly 1% per 100 m above 1000 m, and ambient above 40 °C costs about 2-3% per 5 °C. Ratings on this page assume 1000 m and 40 °C unless stated otherwise. If your site is above either figure, send the conditions and we will quote the next frame up rather than let the set run over its derated capacity.

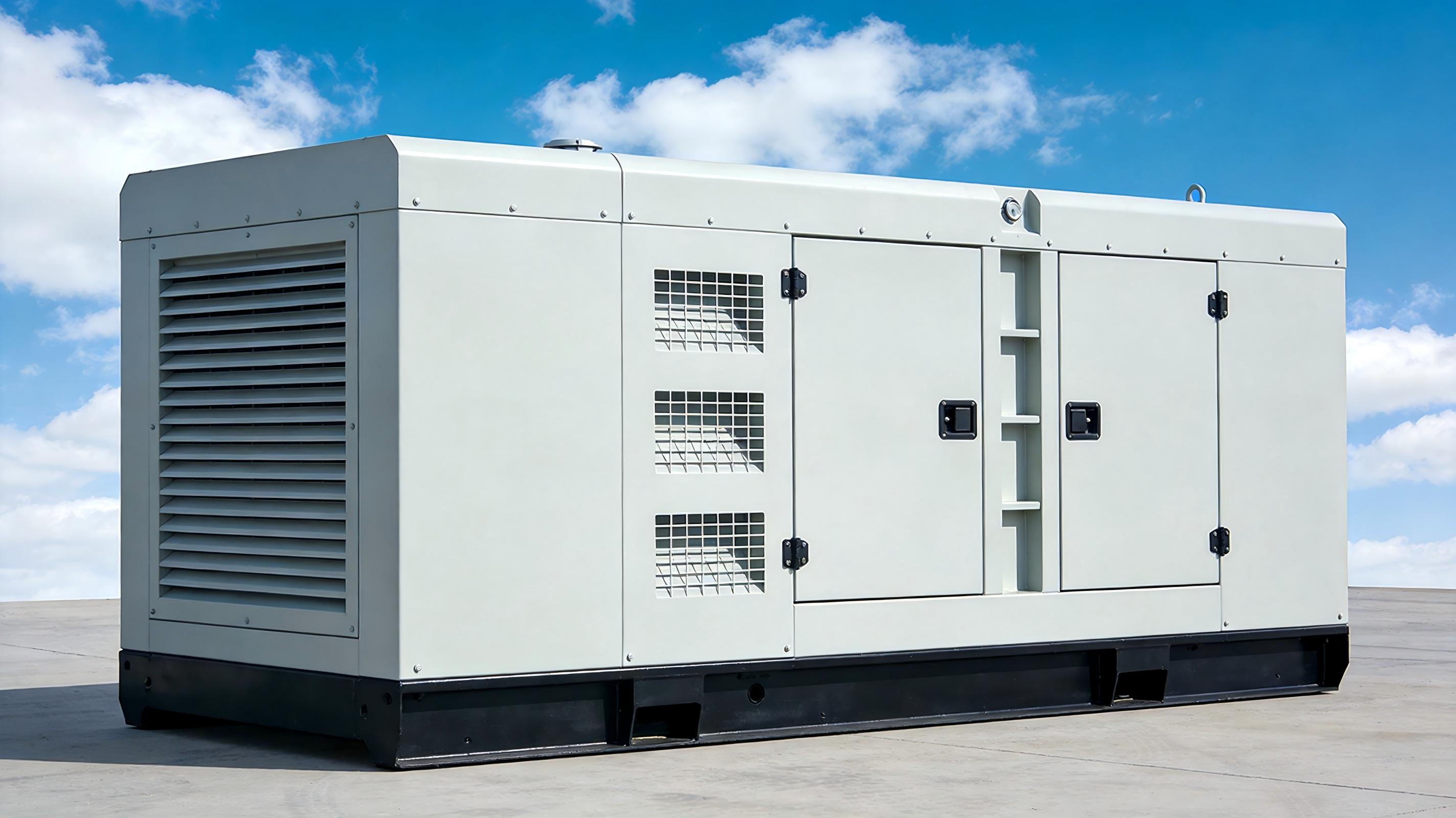

Can a Weichai set be supplied as a silent canopy, container or trailer unit?

Yes. The same engine and alternator go into any of these builds; what changes is the enclosure, the baseframe, the fuel tank and the access layout. Container builds suit remote sites and temporary power; trailer builds suit rental and events. Confirm the build before the order — retrofitting an enclosure afterwards costs more than specifying it up front.

Can a Weichai set run in parallel with the grid or with solar?

Grid-parallel and solar-hybrid operation are possible with a suitable controller and protection relay, but they are engineered projects rather than catalogue items. Send the single-line diagram and the local grid code and we will tell you what the set needs — the generator itself is the same, the switchgear and controls are what change.

How do I get spare parts for a Weichai set?

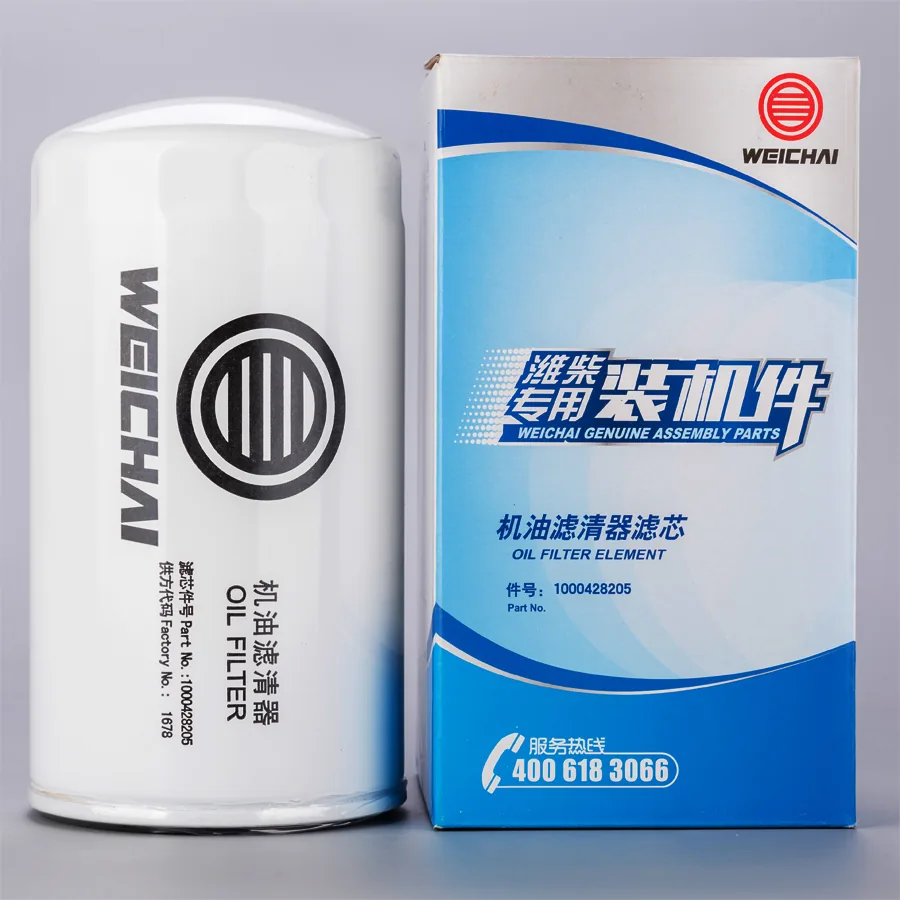

Consumables — filters, belts, gaskets — are stock items and ship in days. Major components such as injection pumps, turbochargers and control boards are ordered against the engine serial number, so keep the serial plate photograph with your records. Give us the serial and we will quote the exact part rather than an equivalent.

What documentation comes with a Weichai generator set?

The shipping set includes the operation and maintenance manual, the wiring diagram, the load bank test record and the engine maker's own documentation. CE marking is supported by the manufacturing plant's Declaration of Conformity, supplied with the shipping documents for applicable products. If your project needs a specific certificate pack, tell us before the order so it ships complete.

What are the payment terms for a Weichai set?

Export orders are 30% deposit with the balance before shipment. We do not offer open account terms or post-shipment letters of credit. The deposit fixes the engine booking, which is why the lead time starts from the day it clears.

Where is a Weichai generator set manufactured?

The engine is built by Weichai in its own factory. The genset — coupling, baseframe, enclosure, control panel and testing — is assembled at our plant in Dongguan, China, and every unit is load bank tested there before shipment. Origin on the commercial invoice is China.

13553838770 info@jinjiadongli.com

Jinjia Power - China Leading Generator Manufacturer Since 2011

Get a Quote

Weichai Diesel Generators & Genset Sets

Power Range: 12kW - 3000kW | 40 Models Available | 2-Year Warranty | Worldwide Shipping

Weichai builds on the same heavy-duty blocks that power Chinese trucks and construction equipment, which is why a Weichai genset costs less per kW than a Western brand while still holding up in daily prime power duty. As a Weichai genset supplier we cover 12kW to 3000kW — the WP2/WP4 range for small commercial standby, and the 6M/12M series for industrial prime power. Send your kVA, voltage and frequency and we quote engine, alternator and CIF price within a working day.

Call 13553838770

Weichai Genset Technical Selection Table

Full power chain per model: standby/prime kVA & kW · engine model & rating · Stamford alternator · SmartGen controller.

View Full Selection Table →

40 ModelsFull Range Available

2 YearsWarranty Coverage

Factory DirectBest Price Guarantee

WorldwideFast Shipping

Load Bank100% Tested

Weichai Power Co., Ltd., founded in 1946 and headquartered in Weifang, Shandong, China, is the largest diesel engine manufacturer in China and a Fortune Global 500 company. Weichai produces a comprehensive range of diesel engines from 12 kW to 3000 kW, serving industries including power generation, marine, mining, and construction. With advanced manufacturing facilities and extensive R&D capabilities, Weichai engines deliver exceptional power density, fuel economy, and durability. Jinjia Power offers a complete lineup of Weichai-powered generator sets for applications worldwide.

Jump to Power Range:

Small Industrial (12-200kW) (13) Medium Industrial (200-500kW) (10) Large Industrial (500-1000kW) (8) Heavy Industrial (1000-2000kW) (7) Ultra Power (2000-3000kW) (6)

WEICHAI Small Industrial 12-200kW Range

12-200kW WEICHAI Diesel Generator Set

Industrial-grade generator sets designed for commercial buildings, small to medium factories, hospitals, and data centers. These units combine reliable engine performance with premium alternator technology for consistent power delivery.

Typical Applications: Commercial buildings, light industrial facilities, hospitals, schools, hotels, and data centers requiring reliable standby or prime power generation.

WEICHAI

JJW-12GF - 12 kW Weichai Diesel Generator

EngineWP2.3D12E2

Config4-cyl · 89 × 92 mm

AlternatorStamford / Leroy Somer / Marathon

ControllerDeep Sea / SmartGen

Voltage380/440/480 V, 3-ph

View Details

WEICHAI

JJW-20GF - 20 kW Weichai Diesel Generator

EngineWP2.3D20E2

Config4-cyl · 89 × 92 mm

AlternatorStamford / Leroy Somer / Marathon

ControllerDeep Sea / SmartGen

Voltage380/440/480 V, 3-ph

View Details

WEICHAI

JJW-30GF - 30 kW Weichai Diesel Generator

EngineWP4.1D30E2

Config4-cyl · 94 × 100 mm

AlternatorStamford / Leroy Somer / Marathon

ControllerDeep Sea / SmartGen

Voltage380/440/480 V, 3-ph

View Details

WEICHAI

JJW-40GF - 40 kW Weichai Diesel Generator

EngineWP4.1D40E2

Config4-cyl · 94 × 100 mm

AlternatorStamford / Leroy Somer / Marathon

ControllerDeep Sea / SmartGen

Voltage380/440/480 V, 3-ph

View Details

WEICHAI

JJW-50GF - 50 kW Weichai Diesel Generator

EngineWP6D50E2

Config6-cyl · 105 × 120 mm

AlternatorStamford / Leroy Somer / Marathon

ControllerDeep Sea / SmartGen

Voltage380/440/480 V, 3-ph

View Details

WEICHAI

JJW-64GF - 64 kW Weichai Diesel Generator

EngineWP6D64E2

Config6-cyl · 105 × 120 mm

AlternatorStamford / Leroy Somer / Marathon

ControllerDeep Sea / SmartGen

Voltage380/440/480 V, 3-ph

View Details

WEICHAI

JJW-80GF - 80 kW Weichai Diesel Generator

EngineWP6D80E2

Config6-cyl · 105 × 120 mm

AlternatorStamford / Leroy Somer / Marathon

ControllerDeep Sea / SmartGen

Voltage380/440/480 V, 3-ph

View Details

WEICHAI

JJW-100GF - 100 kW Weichai Diesel Generator

EngineWP10D100E200

Config6-cyl · 126 × 130 mm

AlternatorStamford / Leroy Somer / Marathon

ControllerDeep Sea / SmartGen

Voltage380/440/480 V, 3-ph

View Details

WEICHAI

JJW-120GF - 120 kW Weichai Diesel Generator

EngineWP10D120E200

Config6-cyl · 126 × 130 mm

AlternatorStamford / Leroy Somer / Marathon

ControllerDeep Sea / SmartGen

Voltage380/440/480 V, 3-ph

View Details

WEICHAI

JJW-150GF - 150 kW Weichai Diesel Generator

EngineWP13D150E200

Config6-cyl · 126 × 155 mm

AlternatorStamford / Leroy Somer / Marathon

ControllerDeep Sea / SmartGen

Voltage380/440/480 V, 3-ph

View Details

WEICHAI

JJW-160GF - 160 kW Weichai Diesel Generator

EngineWP13D160E200

Config6-cyl · 126 × 155 mm

AlternatorStamford / Leroy Somer / Marathon

ControllerDeep Sea / SmartGen

Voltage380/440/480 V, 3-ph

View Details

WEICHAI

JJW-180GF - 180 kW Weichai Diesel Generator

EngineWP13D180E200

Config6-cyl · 126 × 155 mm

AlternatorStamford / Leroy Somer / Marathon

ControllerDeep Sea / SmartGen

Voltage380/440/480 V, 3-ph

View Details

WEICHAI

JJW-200GF - 200 kW Weichai Diesel Generator

EngineWP13D200E200

Config6-cyl · 126 × 155 mm

AlternatorStamford / Leroy Somer / Marathon

ControllerDeep Sea / SmartGen

Voltage380/440/480 V, 3-ph

View Details

WEICHAI Medium Industrial 220-500kW Range

220-500kW WEICHAI Diesel Generator Set

Heavy-duty generator sets engineered for medium to large industrial facilities, critical infrastructure, and demanding commercial applications. These generators feature robust construction, advanced control systems, and superior fuel efficiency.

Typical Applications: Manufacturing plants, mid-size data centers, hospitals, mining operations, large commercial complexes, and municipal infrastructure projects.

WEICHAI

JJW-220GF - 220 kW Weichai Diesel Generator

EngineWP13D220E200

Config6-cyl · 126 × 155 mm

AlternatorStamford / Leroy Somer / Marathon

ControllerDeep Sea / SmartGen

Voltage380/440/480 V, 3-ph

View Details

WEICHAI

JJW-250GF - 250 kW Weichai Diesel Generator

Engine6M26D250E310

Config6-cyl · 150 × 160 mm

AlternatorStamford / Leroy Somer / Marathon

ControllerDeep Sea / SmartGen

Voltage380/440/480 V, 3-ph

View Details

WEICHAI

JJW-280GF - 280 kW Weichai Diesel Generator

Engine6M26D280E310

Config6-cyl · 150 × 160 mm

AlternatorStamford / Leroy Somer / Marathon

ControllerDeep Sea / SmartGen

Voltage380/440/480 V, 3-ph

View Details

WEICHAI

JJW-300GF - 300 kW Weichai Diesel Generator

Engine6M26D300E310

Config6-cyl · 150 × 160 mm

AlternatorStamford / Leroy Somer / Marathon

ControllerDeep Sea / SmartGen

Voltage380/440/480 V, 3-ph

View Details

WEICHAI

JJW-320GF - 320 kW Weichai Diesel Generator

Engine6M33D320E310

Config6-cyl · 150 × 175 mm

AlternatorStamford / Leroy Somer / Marathon

ControllerDeep Sea / SmartGen

Voltage380/440/480 V, 3-ph

View Details

WEICHAI

JJW-360GF - 360 kW Weichai Diesel Generator

Engine6M33D360E310

Config6-cyl · 150 × 175 mm

AlternatorStamford / Leroy Somer / Marathon

ControllerDeep Sea / SmartGen

Voltage380/440/480 V, 3-ph

View Details

WEICHAI

JJW-400GF - 400 kW Weichai Diesel Generator

Engine6M33D400E310

Config6-cyl · 150 × 175 mm

AlternatorStamford / Leroy Somer / Marathon

ControllerDeep Sea / SmartGen

Voltage380/440/480 V, 3-ph

View Details

WEICHAI

JJW-450GF - 450 kW Weichai Diesel Generator

Engine6M33D450E310

Config6-cyl · 150 × 175 mm

AlternatorStamford / Leroy Somer / Marathon

ControllerDeep Sea / SmartGen

Voltage380/440/480 V, 3-ph

View Details

WEICHAI

JJW-500GF - 500 kW Weichai Diesel Generator

Engine12M26D500E310

Config12-cyl · 150 × 160 mm

AlternatorStamford / Leroy Somer / Marathon

ControllerDeep Sea / SmartGen

Voltage380/440/480 V, 3-ph

View Details

WEICHAI Large Industrial 550-1000kW Range

550-1000kW WEICHAI Diesel Generator Set

High-capacity power generation systems designed for large industrial facilities, heavy manufacturing, major infrastructure projects, and mission-critical applications. These generators deliver exceptional power density and long-term reliability.

Typical Applications: Large manufacturing plants, data centers, airports, hospitals, water treatment facilities, and large-scale commercial operations requiring continuous or standby power.

WEICHAI

JJW-550GF - 550 kW Weichai Diesel Generator

Engine12M26D550E310

Config12-cyl · 150 × 160 mm

AlternatorStamford / Leroy Somer / Marathon

ControllerDeep Sea / SmartGen

Voltage380/440/480 V, 3-ph

View Details

WEICHAI

JJW-600GF - 600 kW Weichai Diesel Generator

Engine12M33D600E310

Config12-cyl · 150 × 175 mm

AlternatorStamford / Leroy Somer / Marathon

ControllerDeep Sea / SmartGen

Voltage380/440/480 V, 3-ph

View Details

WEICHAI

JJW-660GF - 660 kW Weichai Diesel Generator

Engine12M33D660E310

Config12-cyl · 150 × 175 mm

AlternatorStamford / Leroy Somer / Marathon

ControllerDeep Sea / SmartGen

Voltage380/440/480 V, 3-ph

View Details

WEICHAI

JJW-700GF - 700 kW Weichai Diesel Generator

Engine12M33D700E310

Config12-cyl · 150 × 175 mm

AlternatorStamford / Leroy Somer / Marathon

ControllerDeep Sea / SmartGen

Voltage380/440/480 V, 3-ph

View Details

WEICHAI

JJW-800GF - 800 kW Weichai Diesel Generator

Engine12M33D800E310

Config12-cyl · 150 × 175 mm

AlternatorStamford / Leroy Somer / Marathon

ControllerDeep Sea / SmartGen

Voltage380/440/480 V, 3-ph

View Details

WEICHAI

JJW-900GF - 900 kW Weichai Diesel Generator

Engine12M33D900E310

Config12-cyl · 150 × 175 mm

AlternatorStamford / Leroy Somer / Marathon

ControllerDeep Sea / SmartGen

Voltage380/440/480 V, 3-ph

View Details

WEICHAI

JJW-1000GF - 1000 kW Weichai Diesel Generator

Engine12M33D1000E310

Config12-cyl · 150 × 175 mm

AlternatorStamford / Leroy Somer / Marathon

ControllerDeep Sea / SmartGen

Voltage380/440/480 V, 3-ph

View Details

WEICHAI Heavy Industrial 1200-2000kW Range

1200-2000kW WEICHAI Diesel Generator Set

Massive power generation systems engineered for the most demanding industrial environments, heavy industries, and utility-scale applications. These generator sets are designed for parallel operation and 24/7 continuous duty.

Typical Applications: Heavy industrial complexes, mining operations, large data centers, hospitals, utility peaking plants, and offshore installations requiring robust, reliable power.

WEICHAI

JJW-1200GF - 1200 kW Weichai Diesel Generator

Engine16M33D1200E310

Config16-cyl · 150 × 175 mm

AlternatorStamford / Leroy Somer / Marathon

ControllerDeep Sea / SmartGen

Voltage380/440/480 V, 3-ph

View Details

WEICHAI

JJW-1400GF - 1400 kW Weichai Diesel Generator

Engine16M33D1400E310

Config16-cyl · 150 × 175 mm

AlternatorStamford / Leroy Somer / Marathon

ControllerDeep Sea / SmartGen

Voltage380/440/480 V, 3-ph

View Details

WEICHAI

JJW-1500GF - 1500 kW Weichai Diesel Generator

Engine16M33D1500E310

Config16-cyl · 150 × 175 mm

AlternatorStamford / Leroy Somer / Marathon

ControllerDeep Sea / SmartGen

Voltage380/440/480 V, 3-ph

View Details

WEICHAI

JJW-1600GF - 1600 kW Weichai Diesel Generator

Engine12M55D1600E310

Config12-cyl · 180 × 215 mm

AlternatorStamford / Leroy Somer / Marathon

ControllerDeep Sea / SmartGen

Voltage380/440/480 V, 3-ph

View Details

WEICHAI

JJW-1800GF - 1800 kW Weichai Diesel Generator

Engine12M55D1800E310

Config12-cyl · 180 × 215 mm

AlternatorStamford / Leroy Somer / Marathon

ControllerDeep Sea / SmartGen

Voltage380/440/480 V, 3-ph

View Details

WEICHAI

JJW-2000GF - 2000 kW Weichai Diesel Generator

Engine12M55D2000E310

Config12-cyl · 180 × 215 mm

AlternatorStamford / Leroy Somer / Marathon

ControllerDeep Sea / SmartGen

Voltage380/440/480 V, 3-ph

View Details

WEICHAI Ultra Power 2200-3000kW Range

2200-3000kW WEICHAI Diesel Generator Set

Ultra high-capacity generator sets for the most demanding power requirements in the world. These systems represent the pinnacle of power generation technology, engineered for maximum reliability, efficiency, and longevity in critical applications.

Typical Applications: Large-scale industrial complexes, major mining operations, power plants, large data centers, and critical infrastructure requiring the highest level of power security and reliability.

WEICHAI

JJW-2200GF - 2200 kW Weichai Diesel Generator

Engine12M55D2200E310

Config12-cyl · 180 × 215 mm

AlternatorStamford / Leroy Somer / Marathon

ControllerDeep Sea / SmartGen

Voltage380/440/480 V, 3-ph

View Details

WEICHAI

JJW-2400GF - 2400 kW Weichai Diesel Generator

Engine16M55D2900E310

Config16-cyl · 180 × 215 mm

AlternatorStamford / Leroy Somer / Marathon

ControllerDeep Sea / SmartGen

Voltage380/440/480 V, 3-ph

View Details

WEICHAI

JJW-2600GF - 2600 kW Weichai Diesel Generator

Engine16M55D3300E310

Config16-cyl · 180 × 215 mm

AlternatorStamford / Leroy Somer / Marathon

ControllerDeep Sea / SmartGen

Voltage380/440/480 V, 3-ph

View Details

WEICHAI

JJW-2800GF - 2800 kW Weichai Diesel Generator

Engine16M55D3500E310

Config16-cyl · 180 × 215 mm

AlternatorStamford / Leroy Somer / Marathon

ControllerDeep Sea / SmartGen

Voltage380/440/480 V, 3-ph

View Details

WEICHAI

JJW-3000GF - 3000 kW Weichai Diesel Generator

Engine16M55D3600E310

Config16-cyl · 180 × 215 mm

AlternatorStamford / Leroy Somer / Marathon

ControllerDeep Sea / SmartGen

Voltage380/440/480 V, 3-ph

View Details

Weichai Diesel Generators & Genset Sets

POWER RANGES

Small Industrial (13)

Medium Industrial (10)

Large Industrial (8)

Heavy Industrial (7)

Ultra Power (6)

WEICHAI Small Industrial 12-200kW Range

12-200kW WEICHAI Diesel Generator Set

WEICHAI Medium Industrial 220-500kW Range

220-500kW WEICHAI Diesel Generator Set

WEICHAI Large Industrial 550-1000kW Range

550-1000kW WEICHAI Diesel Generator Set

WEICHAI Heavy Industrial 1200-2000kW Range

1200-2000kW WEICHAI Diesel Generator Set

WEICHAI Ultra Power 2200-3000kW Range

2200-3000kW WEICHAI Diesel Generator Set

About Weichai Diesel Generators

Didn't find what you're looking for?

Contact
